    1U is all you need.

    Our miniaturized, state-of-the-art, flight-ready CubeSat solution, hosting your payload of up to 0.3U in a single 1U form factor.

    Simple. Fast. Orbit.

    One platform. One integration. Get into orbit quickly.

    • Cost-Effective
    • Flight Heritage
    • Open-Software

    One integrated 1U system: OBC, power, and communication. No vendor lock-in. No integration guesswork. A straightforward way to get into orbit: simply and quickly.

    Configurator

    Configure your 1U4Everything

    Define your mission-specific configuration for a tailored proposal.

    Base Price (excl. Taxes/Customs)

    65.000 EUR

    Subsystems

    ?

    Radio Configuration

    Supports common Amateur Radio and Short Duration Mission bands. Each module delivers 2 half-duplex channels.

    Standard: GMSK

    Optional: FSK, GFSK, MSK, 4-(G)FSK

    Others available upon request.

    Redundancy
    Capacity (Wh)
    MPPT
    ?

    Maximum Power Point Tracking (MPPT)

    MPPT optimizes power harvest from solar panels by continuously adjusting the electrical operating point so the array delivers maximum available power under varying illumination and temperature.

    In-Orbit Passivation
    Solar Panels (incl. coarse sun sensor)
    ?

    Solar Panels (X+ side)

    The X+ side contains an EGSE panel, with access to the EGSE connector of the CyBER OBC and for charging the EPS, as well as the Remove Before Flight (RBF) pin. Therefore the solar cell capacity on this side is limited.

    Efficiency (GaAs)
    ?

    GaAs Solar Cells

    State-of-the-art solar cells with various efficiencies are available. These are typically Gallium-Arsenide (GaAs) cells.

    Structure and Mechanisms

    Monopole Antennas
    Deployable Panels
    Tuna Can ?

    Tuna Can

    Selecting Tuna Can removes 1 solar panel (z- side). When selected, you can choose a maximum of 5 solar panels.

    Anodization
    ?

    Structure & Bus

    The structure complies with the CubeSat standard. The bus is PC-104 compatible (LibreCube Board Specification).

    LibreCube Board Specification →

    Mission Constraints

    Final Delivery Target
    Legal Matters (mandatory)

    Satellites and related technology are subject to export controls. We do not supply to citizens, companies resident in, or institutions from countries against which embargoes or prohibitions under German or EU regulations apply.

    Precision Engineering. Mission Heritage. Quantum Galactics.

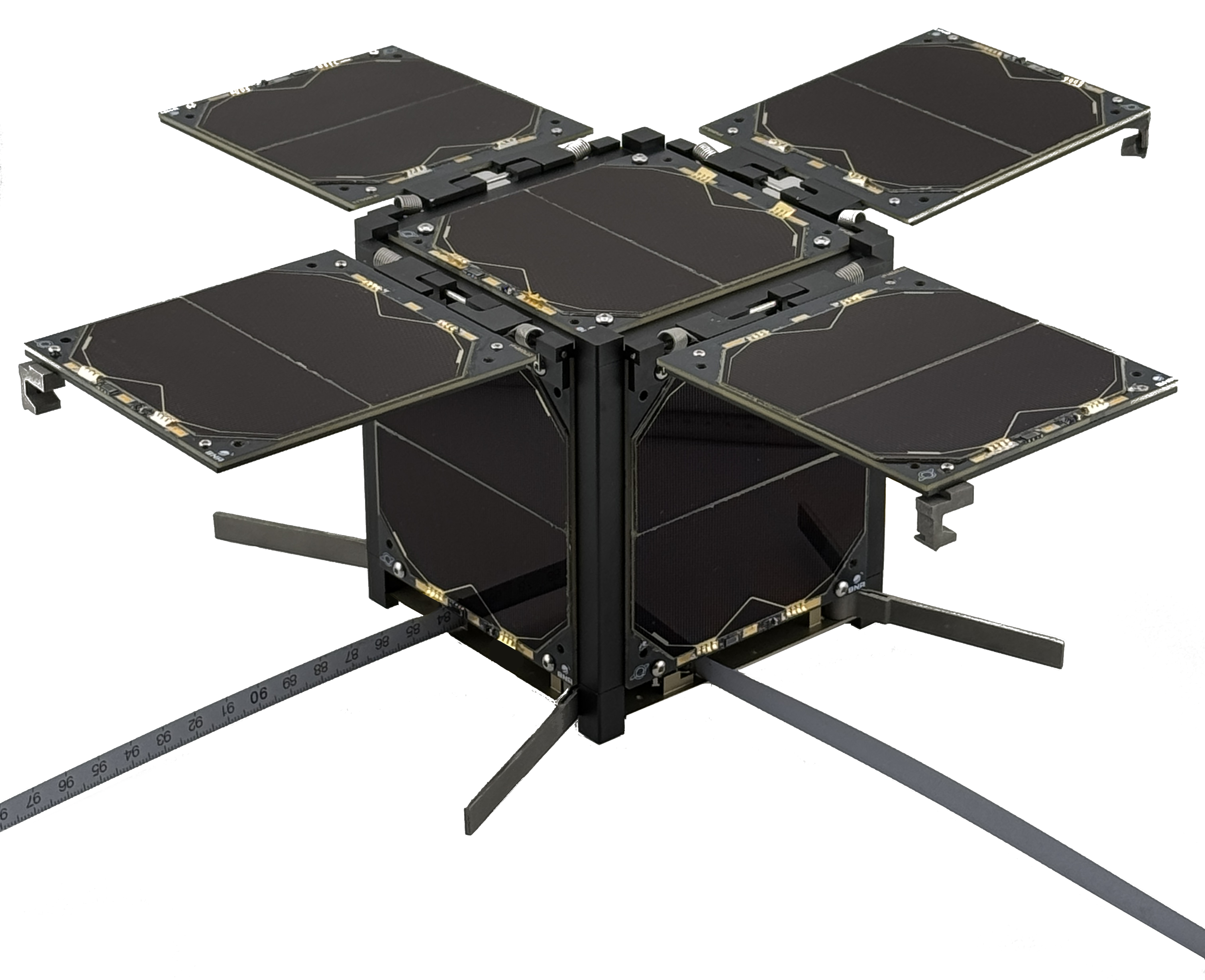

    CISPAsat – 1U4Everything integrated CubeSat

    Feature Overview

    • ✓ Integrated OBC, EPS & COM in 1U
    • ✓ Linux / RACCOON OS
    • ✓ Dual-redundant VHF communication
    • ✓ ARM Cortex-A5, 128 MB RAM + FRAM
    • ✓ Solar array & battery management
    • ✓ Secure Boot & hardened kernel
    • ✓ YAMCS ground segment integration
    • ✓ PC/104 compliant, EGSE support
    • ✓ Flight-proven on multiple missions

    Integrated System

    The 1U4Everything is a complete, integrated CubeSat platform: on-board computer, power management, and communication in a single 1U. Built to be robust and cost-effective, with open-source software and no vendor lock-in.

    Developed by Quantum Galactics, it gives you a simple, fast path to orbit—minimal integration, proven design, and direct engineering support. Ideal for technology demos, education, and rapid deployment.

    Why 1U4Everything?

    • ✓ Open-source Linux & RACCOON OS
    • ✓ Robust & cost-effective
    • ✓ Flight heritage

    Satellite Cybersecurity

    The platform is robust by design: Secure Boot, tamper-resistant architecture, memory-safe software, and redundant watchdog supervision from launch to end-of-life—without sacrificing the flexibility of open-source Linux.

    Level 01

    Secure Boot

    Integrity verification for signed firmware.

    Level 02

    Hardened Kernel

    Security-focused kernel with minimal attack surface.

    Level 03

    Memory Safety

    Critical services in high-assurance Rust.

    Open-Source & RACCOON OS

    The 1U4Everything runs RACCOON OS: open-source, Linux-based flight software: hardened kernel, OTA updates via OSTree, Zenoh / DDS messaging, and YAMCS ground segment integration. No black boxes, no lock-in: full transparency, lower cost. Part of a robust, cost-effective platform.

    Explore RACCOON at rccn.space

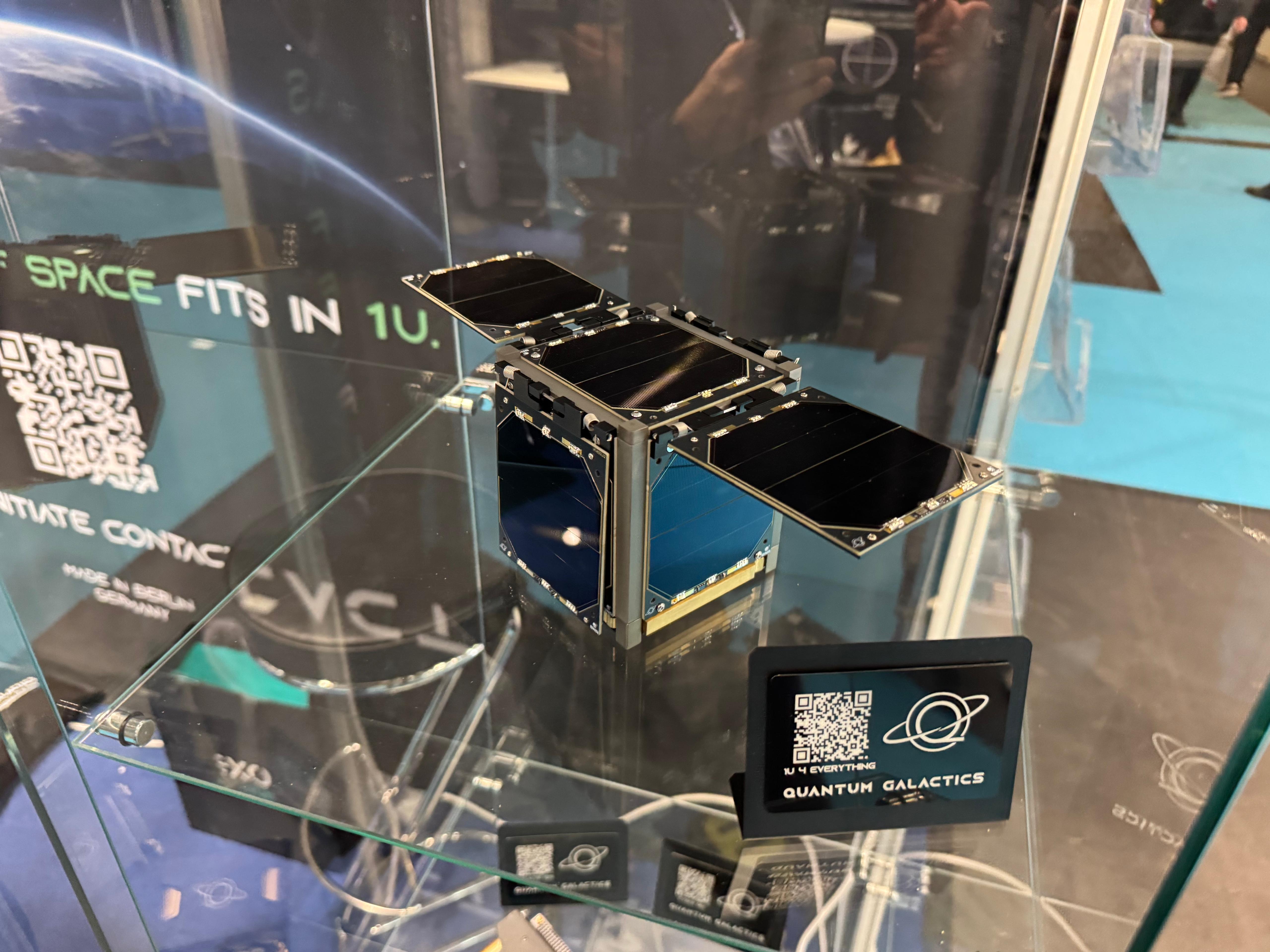

    Product Images

    Explore the 1U4Everything product shots. If you like to see more or need a digital fit-check model just send us a message.

    Documentation & AIT Support

    Need datasheets, interface control documents, or AIT support? We bundle documentation with every configuration and provide direct engineering help for your campaign.

    Request Fact-Sheet Request Manual

    The 1U4Everything manual is shared after a signed NDA due to export control requirements. Fact sheets are available immediately.

    Your mission, our commitment. Let’s build it together.
